HDPE Studded Dimpled Drainage Sheet
Manufactured from 100% virgin HDPE resin, no recycled materials, excellent anti-aging & chemical resistance.

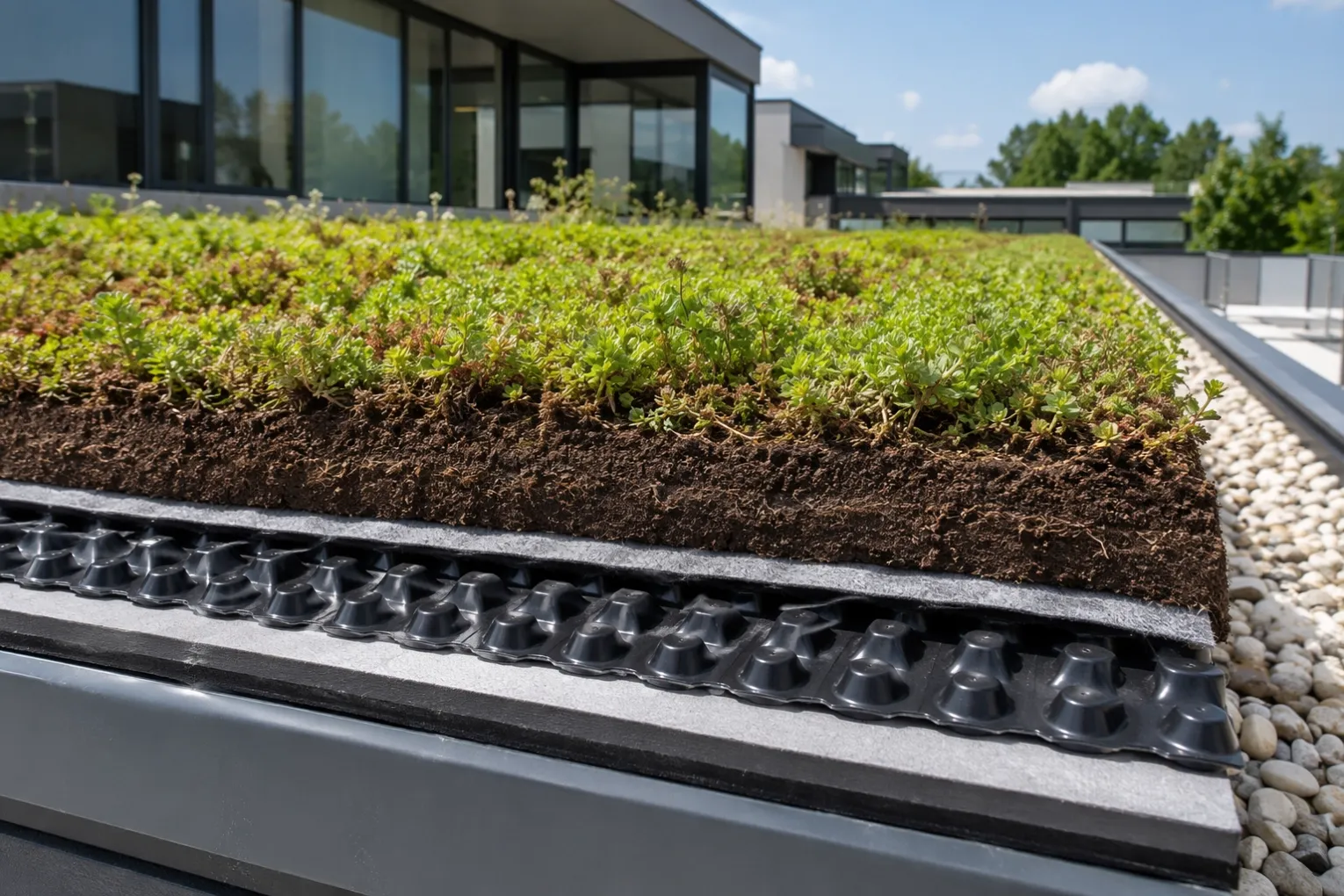

HDPE Studded Drainage Sheet – Green Roof & Basement Waterproofing Project
- Project Background: Underground parking roof greening project, needs long-term drainage & root penetration resistance
- Materials Adopted: 12mm dimpled drainage sheet, 100% virgin HDPE, compounded with non-woven geotextile filter layer
- Core Advantages: High compressive strength, quick drainage, lightweight, simple on-site installation
- Execution Effect: Solved roof ponding & plant root corrosion, meets European green building standards, service life ≥30 years
HDPE dimpled drainage board (concave‑convex drainage sheet), manufactured in Shandong, China. Made of high‑density polyethylene, high compressive strength, anti‑aging, chemical‑resistant, root‑resistant.Dimple height optional:8‑50 mm; roll width 1m /2m, roll length 10‑20 m. Weight range:650‑1800 g/m². Can be compounded with non‑woven geotextile as filter layer.Mainly used for green roof, garage top drainage, basement wall protection, tunnel, landfill, slope and transportation construction projects.3‑year warranty, online technical support. We provide drawing design, 3D‑model, full‑project solution and cross‑category material matching service.
English | Deutsch | 中文 |
|---|---|---|
Material: HDPE（High‑Density Polyethylene） | Material: HDPE | 材质：高密度聚乙烯 HDPEAlibaba.co... |
Dimple height:8/10/12/16/20/25/30/40/50 mm | Noppenhöhe:8‑50 mm | 凸点高度：8‑50 mm 可选Alibaba.co... |
Roll width: 1 m / 2 m | Rollenbreite:1 m / 2 m | 卷材幅宽：1 米、2 米Alibaba.co... |
Roll length:10‑20 m | Rollenlänge:10‑20 m | 卷长：10‑20 米 |
Weight:650‑1800 g/m² | Flächengewicht:650‑1800 g/m² | 克重：650‑1800g/㎡Alibaba.co... |
Color: Black(white/green optional) | Farbe: Schwarz(weiß/grün optional) | 颜色：黑色，可做白 / 绿 |
Compressive strength:150‑350 kPa | Druckfestigkeit:150‑350 kPa | 抗压强度：150‑350 千帕Alibaba.co... |
Temperature resistance‑30℃~+80℃ | Temperaturbeständigkeit‑30℃~+80℃ | 耐温‑30~+80℃ |
Optional composite with geotextile | Optionale Kaschierung mit Geotextil | 可复合土工布滤层 |
- Underground garage & basement: Relieve water pressure, protect waterproof layer, avoid leakage and dampness.
- Green roof & landscape projects: Fast drainage, root resistance, improve plant survival rate.
- Tunnel engineering: Side wall & vault drainage, reduce hydrostatic pressure, protect tunnel structure.
- Highway & railway subgrade: Drain retained water, stabilize roadbed, prevent settlement and deformation.
- River, lake & slope projects: Balance backwater pressure, prevent geomembrane bulging and slipping.
- Our HDPE dimpled drainage board adopts 3D hollow structure for efficient & stable drainage. Widely used in tunnel, road subgrade, underground garage, green roof and water conservancy projects. Made of virgin HDPE, it features high compression resistance, anti-clogging, anti-aging and easy installation. We provide one-stop customized drainage system solutions for global infrastructure projects.
